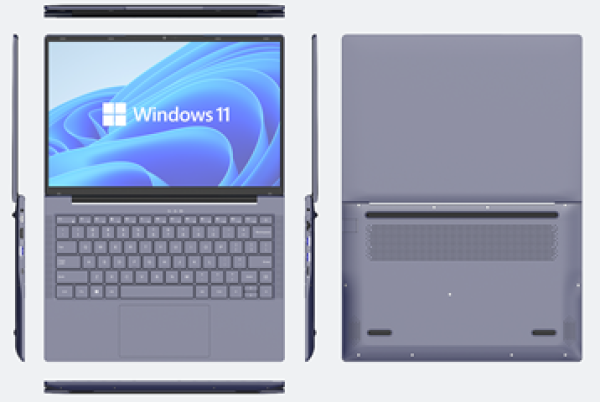

EAG-PAD-005
Description
Product Model：EAG-PAD-005 Description: i3 8G+256G 1215U/Without Windows Key
| System Physical Standard Configuration | ||||||
| Type | Details | Descriptions | ||||
| Product Form | Form Factor | Notebook,Plastic shell | ||||
| Dimensions | 314.4*220*19.9mm | |||||
| Weight | 1.48kg | |||||
| LCD | Screen Size | 14" | ||||
| Screen Resolution | 1920*1200 IPS | |||||
| TP | Touch Module | / | ||||
| Battery | Type | Lithium-ion polymer battery 11.4V | ||||
| Capacity | 5000mAh | |||||
| Working Time | 4-6 hours | |||||
| System Hardware Configuration | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type |
Alder
Lake-U 15W: i3-1215U/i5-1235U/i7-1255U Raptor Lake-U 15W: i3-1305U/i5-1335U/i7-1355U |
||||
| Speed |
1.2-4.4GHZ(i3-1215U)、1.3-4.4GHZ(i5-1235U)、1.7-4.7GHZ(i7-1255U) 1.6-4.5GHZ(i3-1305U)、1.3-4.5GHZ(i5-1335U)、1.7-5.0GHZ(i7-1355U) |
|||||
| GPU | Type |
Intel®
UHD Graphics (I3-1215U)、Intel® Iris® XeGraphics ( I5-1235U； I7-1255U) Intel® UHD Graphics (i3-1305U)、Intel® Iris® X Graphics ( i5-1335U, i7-1355U ) |
||||
| Memory | Capacity | LPDDR 8GB/16GB | ||||
| Storage | Capacity | / | ||||
| SSD | Optional | SSD：1pcs*PCIE3.0&SATA ；1pcs*PCIE4.0&SATA | ||||
| HDD | Optional | / | ||||
| Camera | Front | 2.0 Megapixel | ||||
| Speaker | Built-in | Built-in stereo speakers 4Ω/2W*2 | ||||
| MIC | Input Device | DMIC*2 | ||||
| Hall Power | Built-in | Support | ||||
| Fingerprint | Optional | Integrated into the touch pad | ||||
| TPM | Optional | Optional | ||||
| Network Connections | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module | WIFI 802.11 b/g/n/ac | ||||
| 3G/LTE | Optional | Optional | ||||
| Bluetooth | BT Module | Bluetooth4.2 | ||||
| Ethernet Network | External Dongle | Support | ||||
| Interface Configuration | ||||||
| Type | Details | Descriptions | ||||
| Memory card socket | External memory | 1x micro SD card | ||||
| kensington Lock | Lock | Support | ||||
| SIM | SIM Card Slot | / | ||||
| USB Interface | USB Interface Type A | USB3.2(gen1 ,5Gbps) * 3 | ||||
| USB Interface Type C | USB Type C(Data+DP+Charging)*1 | |||||
| Headphone jack | Music output | ∮ 3.5mm standard headphone jack | ||||
| DC connector | Power | ∮ 3.5mm power connector | ||||
| HDMI interface | Video output | HDMI A Type | ||||
| RJ45 Jack | Network input | Ethernet interface ,Support（1Gbit) | ||||
| Keyboard | Input device | US, Round with Backlight & Square with Backlight (Optional) | ||||
| Mouse | Input device | USB、BT Expuntable Wired / Wireless Supportive | ||||
| Main Accessories | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | Standard Configuration | DC 19V/3A | ||||
| USB Cable | Standard Configuration | / | ||||
| Software Configuration | ||||||
| Type | Details | Descriptions | ||||
| Operating System | Windows | Windows 11 | ||||
